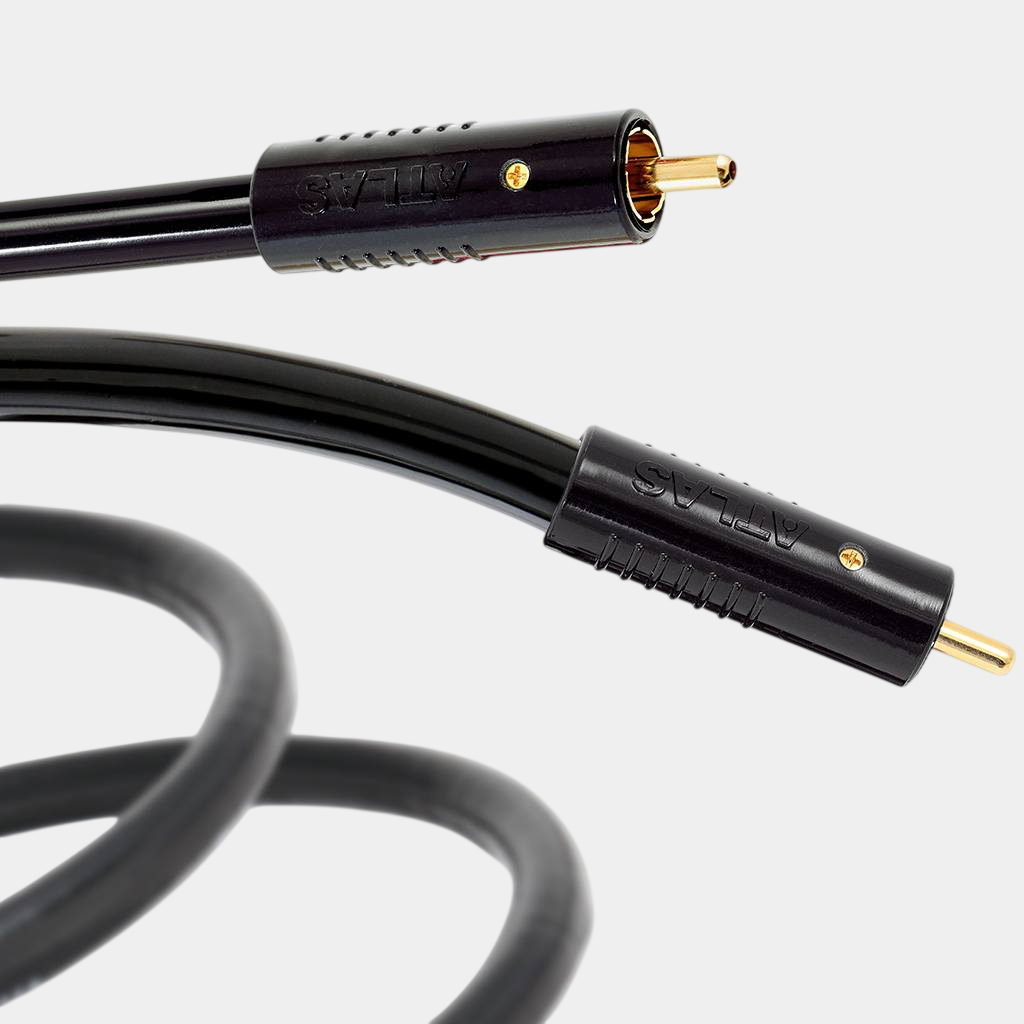

Atlas Hyper Achromatic X RCA Subwoofer Cable
- UK Wide Shipping Available
- Long established Official Retailer
- Usually in-stock ready to ship
Atlas Hyper Achromatic 1 RCA to 1 RCA Subwoofer Cable
Today’s sophisticated subwoofers for both audio and home cinema installations demand fast, accurate low frequency performance free of external RF (radio frequency) and EM (electro-magnetic) interference and noise picked up by the cable itself (usually heard as hum). The Atlas Hyper Subwoofer Cable is a double-screened subwoofer connection cable with superb rejection of noise and interference, suitable for runs of up to 15m.
Hyper Achromatic uses an OCC (Ohno Continous Casting) high purity copper conductor with foamed Polyethylene dielectric; critically it has a double screen which make it perfectly suited to mixed technology (analogue and digital) systems.
Features :
- Achromatic RCA Plugs
- OCC Copper Conductors
- PEF Dielectric
- Co-ax Construction

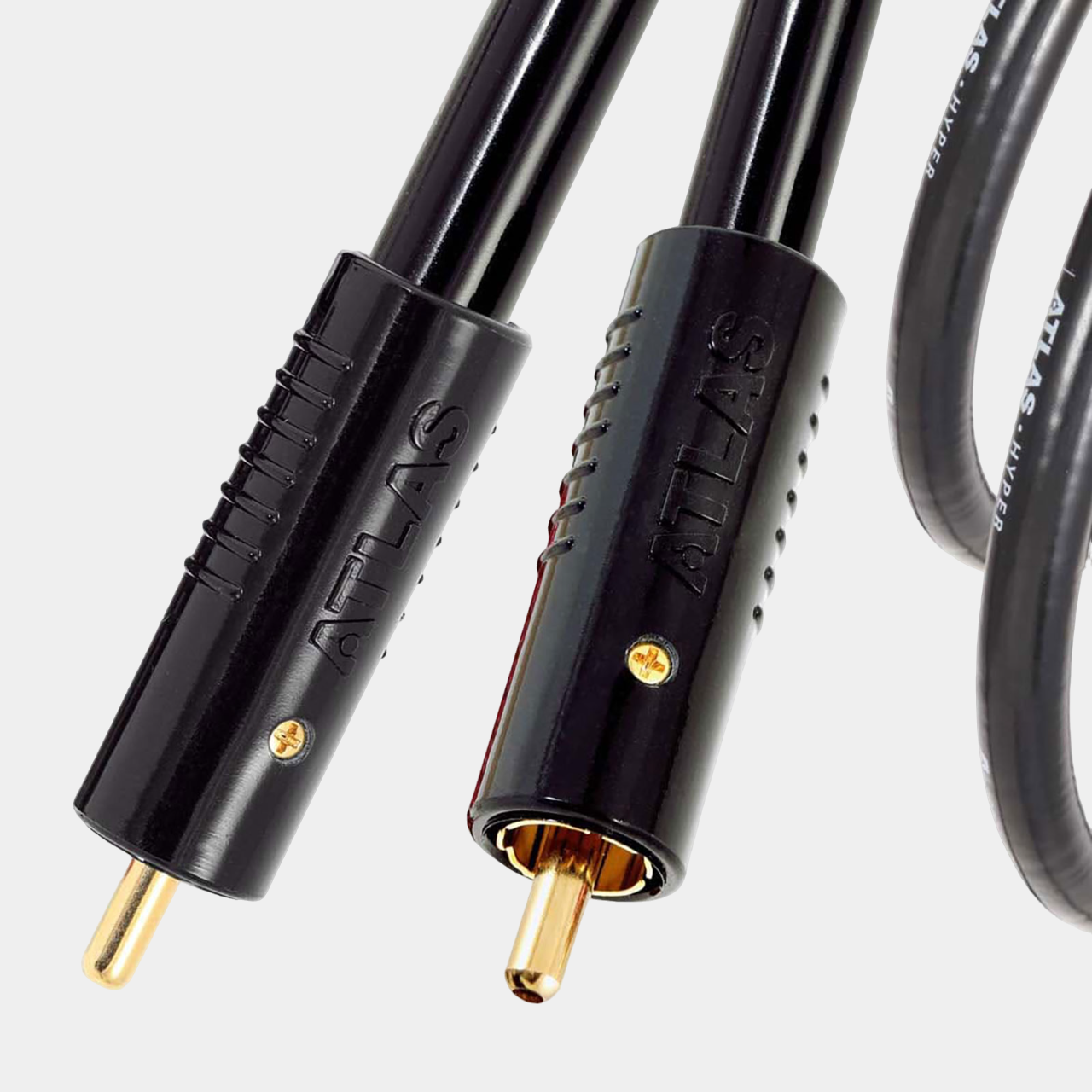

Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
OCC Copper
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
- Construction : Co-ax (Double Screened)
- Material : 6n OCC Copper
- Dielectric : PEF
- Screen : OFC, 95% (double OFC braid)
- Capacitance : 71.54 pF/m
- Inductance : 0.542 µH/m
- Resistance : 0.0239 Ohms/m
- VOP : 0.682
- Outside Diameter : 9.0mm
